AATCC Washing Machine
Model Number of M6
[Instrument Name]：AATCC Washing Machine
[Scope of Application]:
A testing machine specifically designed to measure textile shrinkage in the laboratory; it complies with the latest AATCC standards (Table I, IIC, IID, IIIA, IIIB) and the requirements of the AATCC M6 Monograph.
[Relevant Standards]: AATCC TM88B, TM88C, 124, 135, 143, 150, LP1-2018

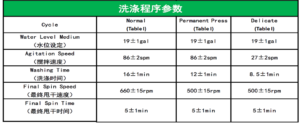

[Standard Washing Procedures]:
1.Normal
2.Permanent press
3.Delicate
4.Cstom
5.Drain&Spin
[Instrument Features]:
1. Equipped with an industrial-grade touchscreen controller supporting multiple languages (Chinese and English) to meet diverse needs.
2. Displays and controls water temperature within the drum; utilizes proportional regulation of cold and hot water.
3. Features robust customization capabilities, allowing settings for: water temperature, water volume, agitation speed, washing time, rinsing time, spin speed, spin duration, and number of wash cycles.
4. Manual mode allows for independent operation of cold water intake, hot water intake, washing, draining, and spinning.
5. Calibration functions for water temperature, water volume, agitation speed, and spin speed.
6. User-friendly design with selectable door lock function (enabled or disabled).
7. Flashing signal light to alert the operator or indicate the completion of the test.
8. Fault alarm function to facilitate maintenance and troubleshooting.
9. Robust machine construction:
9.1 Ceramic-coated steel outer drum.
9.2 Stainless steel inner wash drum.
9.3 High-power variable-speed servo motor offering excellent stability and durability.
[Technical Parameters]:
1. Washing capacity: 10.5 kg
2. Power supply: 220V / 50Hz
3. Power rating: 1.5 kW
4. Machine dimensions (H x W x D): 1100mm x 650mm x 710mm
5. This unit does not include an internal heating function; hot water must be supplied by an external water heater.
