Impact Penetration YG(B)813T

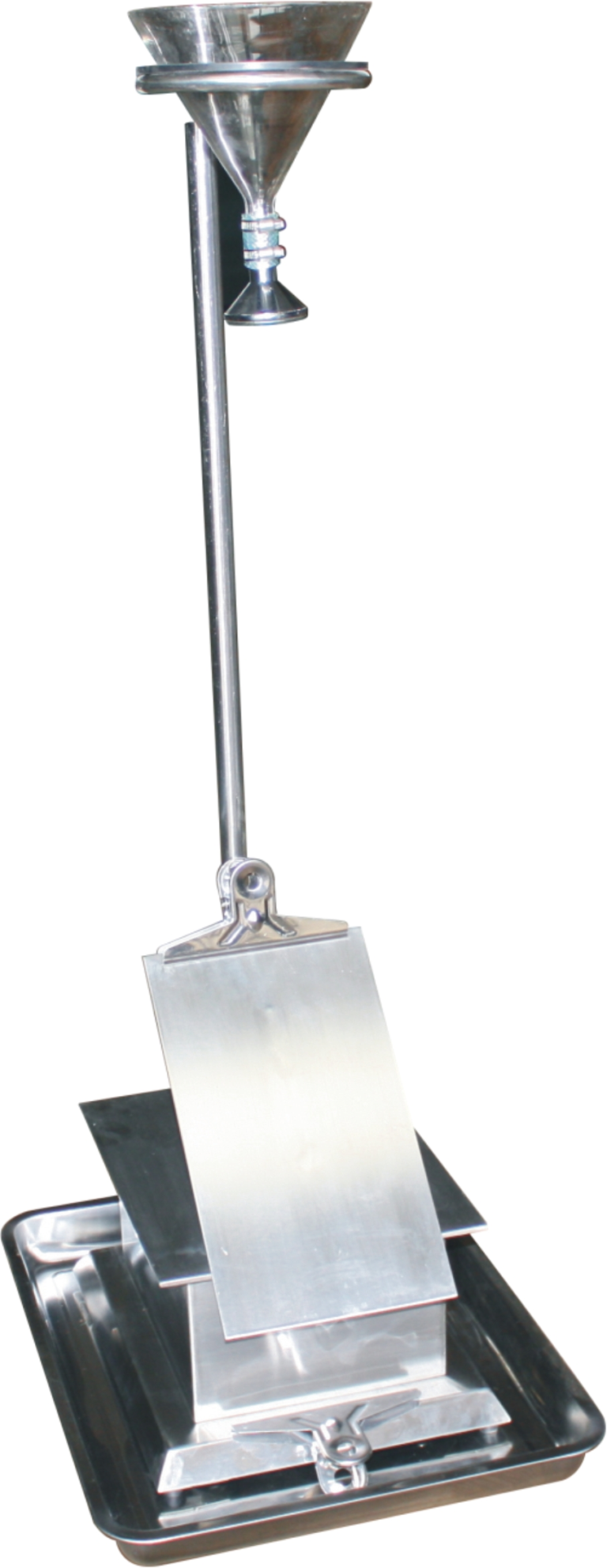

[Instrument Name]：Fabric Impact Penetration Tester

[Scope of Application]:

It is used to determine the water penetration resistance of fabrics under low-impact conditions, thereby predicting the rain penetration resistance of apparel fabrics.

[Relevant Standards]:

GB/T 33732, GB/T 24218.17, ISO 9073-17, AATCC 42, ISO 18695, etc.

[Technical Parameters]:

1. Impact height: (610 ± 10) mm (adjustable range: 30–60 mm)

2. Funnel diameter: 152 mm

3. Specimen mounting angle: 45° to the horizontal

4. Included measuring cup: 500 mL

5. Specimen dimensions: (178 ± 10) mm × (330 ± 10) mm

6. Tension spring clamp: (0.45 ± 0.05) kg

7. Overall dimensions: 335 mm (L) × 285 mm (W) × 1080 mm (H)

8. Weight: Approx. 5.5 kg
