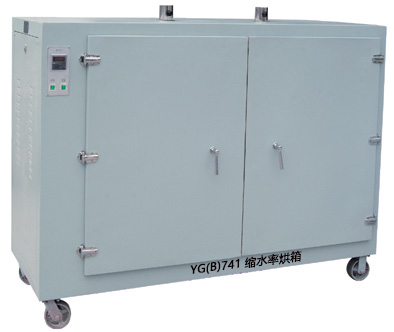

Shrinkage Oven YG(B)741X

[Instrument Name]：Shrinkage Test Oven

[Scope of Application]:

It is used for the flat drying of fabrics, garments, or other textile products following shrinkage tests.

[Relevant Standards]: GB/T 8629, ISO 6330, etc.

[Technical Parameters]:

1. Temperature range: Ambient temperature to 99.9°C (digital display)
2. Temperature control accuracy: ±1°C
3. Temperature uniformity: 60°C ± 5°C
4. Drying method: Forced hot air convection
5. Blower motor: 40W/220V; Speed: 2800 r/min (2 units)
6. Heating power: 4500W
7. Power supply: AC 380V ± 10% (three-phase, four-wire system)
8. External dimensions: 1400 (L) × 820 (D) × 1560 (H) mm
9. Chamber dimensions: 1000 (L) × 600 (D) × 1050 (H) mm
10. Weight: 240 kg
