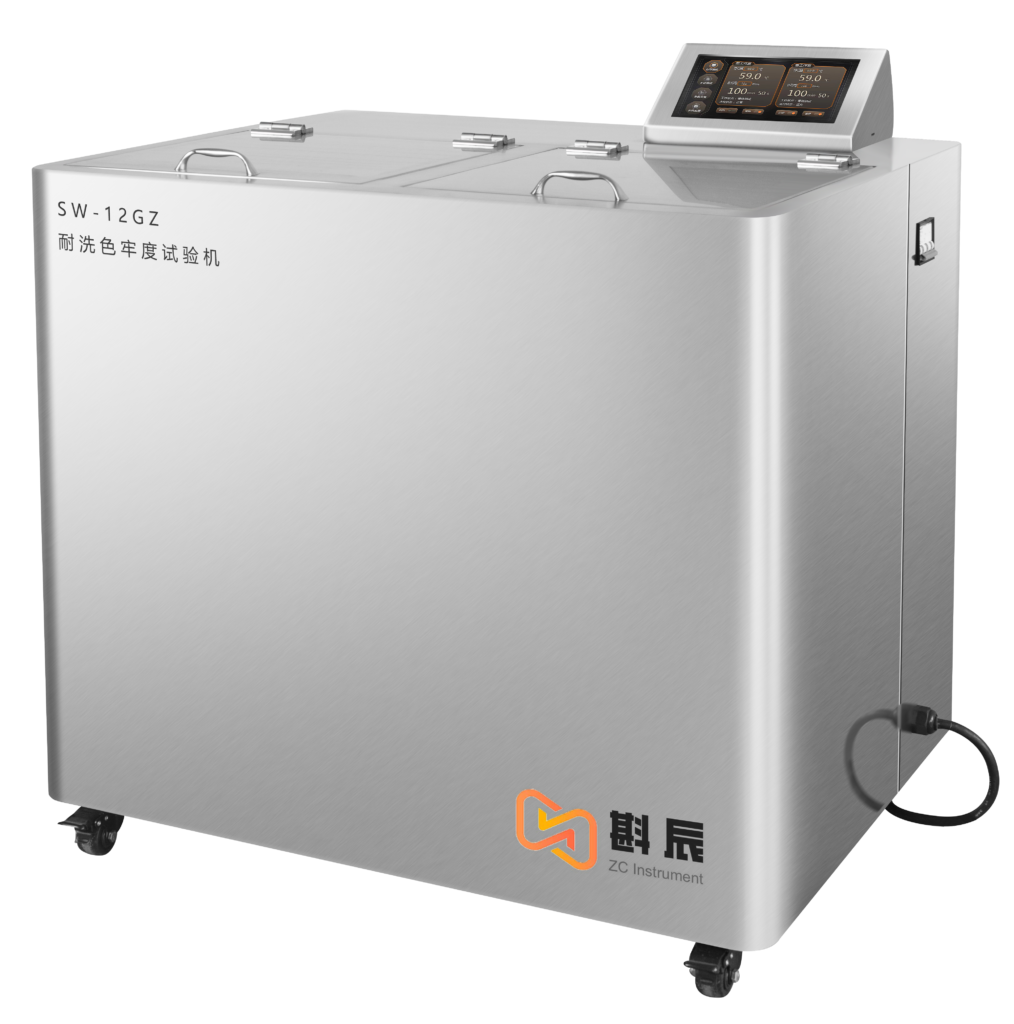

Washing Color Fastness Tester
Model Number:SW-12GZ/24GZ
[Instrument Name]: Washing Color Fastness Tester
[3rd Lab Qualification Certificate]：
Tianfangbiao Certificate No.：TTTS-MCDT-FZ2512-04
[Patent number]：China Patent No. 23342211
[Calibration Certificate]：Shanghai Branch of the National Textile Metrology Station / Shanghai Textile Group Testing Standards Co., Ltd. Certificate No.ZZ-202603133
[Drafting standard]：Enterprise Standard Q/WZC012-2026SW-12D
[Scope of Application]:
It is used for testing the color fastness of various textiles to washing, dry cleaning, and milling; also used to evaluate the wash-fastness performance of dyes.
[Relevant Standards]：
GB/T 3921-2008 “Textiles — Tests for colour fastness — Colour fastness to washing with soap or soap and soda”;
GB/T 5711-2015 “Textiles — Tests for colour fastness — Colour fastness to dry cleaning using perchloroethylene solvent”;
GB/T 12490-2014 “Textiles — Tests for colour fastness — Colour fastness to domestic and commercial laundering”;
AATCC 61/1A/2A/3A/4A/5A, JIS L0860/0844, BS 1006, ISO 105 C01/02/03/04/05/06/08, DIN, NF, CAN/CGSB, AS, etc.
[Instrument Features]:
1. Features a 10-inch multifunctional color touchscreen for convenient operation.
2. Includes automatic water level control with automatic water intake and drainage functions, as well as boil-dry protection.
3. Constructed with high-grade brushed stainless steel for an aesthetically pleasing and durable finish.
4. Equipped with a safety interlock switch on the door to effectively prevent burns and crushing injuries.
5. Utilizes an imported industrial microcontroller for temperature and time programming; incorporates PID (Proportional-Integral-Derivative) control to effectively prevent temperature overshoot and ensure timing accuracy within ±1 second.
6. Employs solid-state relays to control heating elements; this eliminates mechanical contacts, resulting in stable temperatures, silent operation, and an extended service life.
7. Features multiple built-in standard programs for automatic operation via direct selection; supports program editing and storage, as well as individual manual operations, to accommodate various methodological standards.
8. Test cup manufacturing quality far surpasses that of domestic competitors:
8.1 Molding process: Our company uses a die-casting process, whereas similar products use split-welded construction; the integral die-casting process results in a smoother, flatter, and more aesthetically pleasing finish, while welding results in a rough appearance.
8.2 Internal cup treatment: Our company employs a shot-blasting process, while similar products use standard casting/forging; the additional shot-blasting step densifies the steel structure for greater durability and creates an attractive matte-like surface finish.
8.3 Cup material: Our company uses 316 stainless steel, whereas similar products use 201, 202, or 304 grades; 316 stainless steel contains molybdenum, offering superior corrosion resistance—particularly in environments involving seawater, acids, and alkalis.
8.4 Gasket material: Our company uses imported food-grade silicone, while similar products use black rubber or standard domestic silicone; imported silicone offers better corrosion resistance, making it ideal for tests involving perchloroethylene, seawater, and chlorine bleaching agents.
8.5 Cup weight: Our company’s ASTM-standard cup weighs 630g (vs. 538g for competitors), and its GB-standard cup weighs 394g (vs. 342g for competitors); the heavier, thicker construction demonstrates the use of premium materials, ensuring greater durability.
8.6 Compression spring material: Our company uses high-quality spring steel, whereas similar products use standard hard steel; spring steel provides a superior tactile feel—offering a balance of flexibility and firmness—whereas standard hard steel feels stiff and jarring to operate.
[Technical Specifications]:
1. Test cup capacity:
550ml (￠75mm × 120mm) — Suitable for GB, ISO, JIS, and other standards;
1200ml (￠90mm × 200mm) — AATCC Standard (Selected)
2. Distance from rotating rack center to test cup bottom: 45 mm
3. Rotation speed: 40 ± 2 r/min
4. Timing control range: 9999 min
5. Timing control error: < ±5 s
6. Temperature control range: Ambient temperature to 100°C
7. Temperature control error: ≤ ±1°C
8. Material: Interior and exterior made of 304U stainless steel with a brushed finish
9. Heating power: Electric heating, 5.5 kW
10. Water level control: Automatic water inlet and drainage
11. Display: 10-inch multifunctional color touchscreen
12. Heating power: Two sets (Left chamber: 4.5 kW; Right chamber: 4.5 kW)
13. Power supply: AC 380V, 50 Hz, 5 kW
14. Dimensions: 1000 mm × 750 mm × 1150 mm (L × W × H)
15. Weight: 150 kg
[Optional IoT Module Functions]:
1. Equipment status statistics: Displays the number of online and offline devices.
2. Equipment alarm display: Shows the number and severity levels of current alarms.
3. Real-time test data and status/progress display (including the specific equipment involved in the test). Real-time data, experiment progress, and total experiment duration
4. Parameters can be set and sent directly to the instrument for modification, enabling bidirectional control between the instrument and the platform
5. Map display: Shows the geographical location and status of various devices based on device type
6. Laboratory monitoring: Integrates surveillance cameras based on customer needs to display real-time video feeds from the laboratory
7. Customized unified management interface for laboratory equipment
8. Temperature and humidity display: Integrates with third-party monitoring platforms to collect and present real-time environmental data (temperature and humidity) from the laboratory
9. Supports device monitoring and alarm notifications via both App and Web interfaces
10. Supports customization of App name and logo
11. Multi-account platform management: Supports multi-level permission settings and account allocation across different devices, departments, and subsidiaries, facilitating unified enterprise management and enhancing device data security
12. Supports maintenance work order submission, allowing manufacturers to view and manage maintenance requests
13. Supports data exchange via Ethernet (wired), Wi-Fi, and Bluetooth
14. Capable of monitoring and managing multiple devices simultaneously
15. Features large-capacity storage and analysis capabilities for test data
16. Supports full-software OTA (Over-the-Air) updates for device evolution
[Standard Configuration]:
The 12GZ model features a “working chamber + preheating chamber” structure; users can choose from the following configurations (A or B):
A: Left working chamber with 12 ISO standard cups (550ml) + Right preheating chamber
B: Left working chamber with 6 AATCC standard cups (1200ml) + Right preheating chamber
The 24GZ model features a “working chamber + working chamber” structure; users can choose from the following configurations (A, B, or C):
A: Left working chamber with 12 ISO standard cups (550ml) + Right working chamber with 12 ISO standard cups (550ml)
B: Left working chamber with 6 AATCC standard cups (1200ml) + Right working chamber with 6 AATCC standard cups (1200ml)
C: Left working chamber with 12 ISO standard cups (550ml) + Right working chamber with 6 AATCC standard cups (1200ml)
