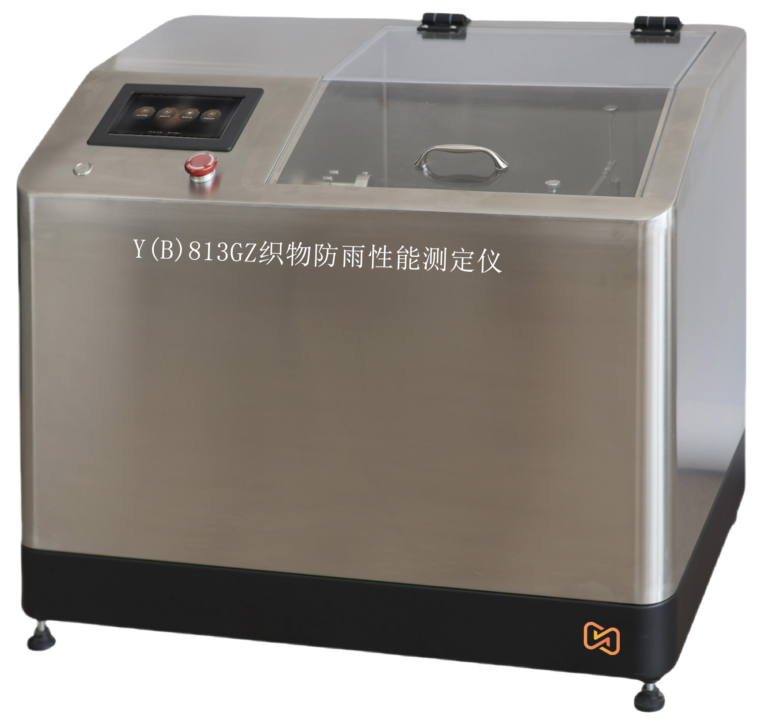

Rain Proof YG(B)813GZ

[Instrument Name]：Fabric Rain Water Proof Tester

[Scope of Application]:

This instrument is used to determine the resistance of various fabrics to water penetration under a specific spray impact, thereby predicting their resistance to rain penetration.

[Relevant Standards]: GB/T 23321, ISO 22958, AATCC 35, etc.

[Instrument Features]:

1. Uses a circulating pump for pressurization instead of the traditional water column method;
2. Color touchscreen control system with Chinese/English interface;
3. Automated control of the testing process;
4. Automatic water level control system;
5. Height-adjustable specimen holder.

[Technical Parameters]:

1. Test Method: Uses a water pump for pressurization instead of the traditional water column method; more convenient, faster, and space-saving.
2. Distance from nozzle to specimen: 305 mm
3. Nozzle holes: 13 holes, diameter 0.99 ± 0.013 mm
4. Pressure measurement range: 1 kPa – 50 kPa; resolution 0.01 kPa
5. Timing range: 1–9999 s
6. Power supply: AC 220V ± 10%, 50 Hz
7. Dimensions: 840 × 640 × 720 mm

8. Weight: 65 kg
