Durawash

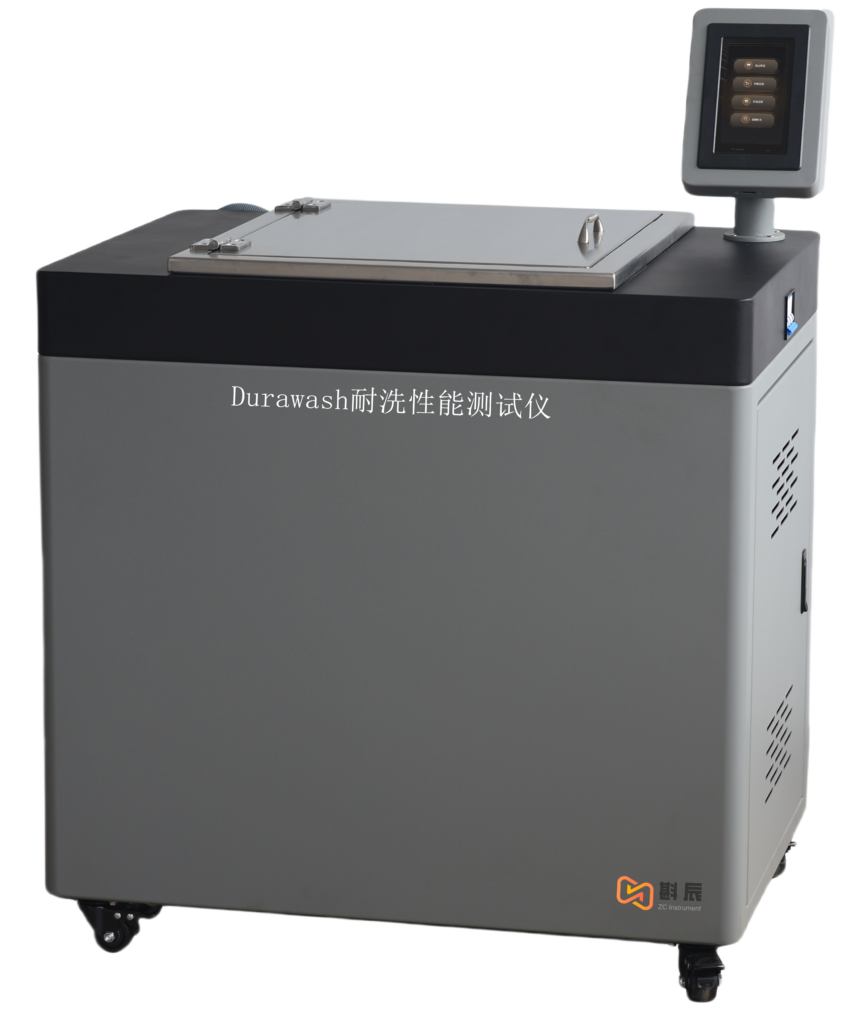

[Instrument Name]: Durawash Print Color Fastness Tester

[Scope of Application]:

This machine incorporates the best features of similar domestic and international products. Key features include: 1. A large LCD touchscreen display for intuitive and convenient operation. 2. An inner drum made of high-quality, acid-resistant stainless steel, offering an attractive appearance and exceptional durability. 3. A safety switch on the chamber door; opening the door temporarily halts the machine’s moving parts (note: to prevent water splashing, the agitator rotation must stop before the door is opened).

This instrument is designed for specialized washing tests according to M&S standards to evaluate the effect of washing on the colorfastness of prints, as well as the stability of garments and accessories. It complies with M&S standards C15 and P5 for fabric and print stability, and meets the stability testing requirements for garments and fabrics set by international retail chains.

[Relevant Standards]: Marks & Spencer P5, C15, 8A, 8B, 8C; BS 7907.

[Test Mode]:

A solution is prepared by adding a specific amount of water and detergent to the washing drum. After heating the solution to the required temperature, the specimen is inserted. The instrument runs for a set duration, after which the specimen is removed for evaluation.

[Instrument Features]:

1. Heating elements are controlled by solid-state relays; this eliminates mechanical contacts, ensuring stable temperature, silent operation, and a long service life.

2. Features automatic water level control, automatic water intake and drainage, and dry-boil protection.

3. Touchscreen display with Chinese interface for user-friendly operation.

4. Equipped with a safety interlock switch on the door to effectively prevent burns and crushing injuries.

5. Test water temperature, duration, and water level are all automatically controlled by a microcontroller program.

[Technical Specifications]:

1. Specimen: Whole garment or 500×500 mm dyed specimen

2. Required water capacity: (40±2) L / (55±2) L

3. Shaft rotation speed: (560±30) r/min

4. Test temperature: Ambient temperature to 99.9°C (adjustable); standard test temperatures: 40±2°C, 50±2°C, or 60±2°C

5. Test duration: 1–9999 min (adjustable); standard test duration: 15 min

6. Heating power: 4 kW

7. Power supply: AC 380V ±10%, 50 Hz, 5 kW

8. Dimensions: 850 mm × 650 mm × 1150 mm (L × W × H)

9. Weight: 90 kg
