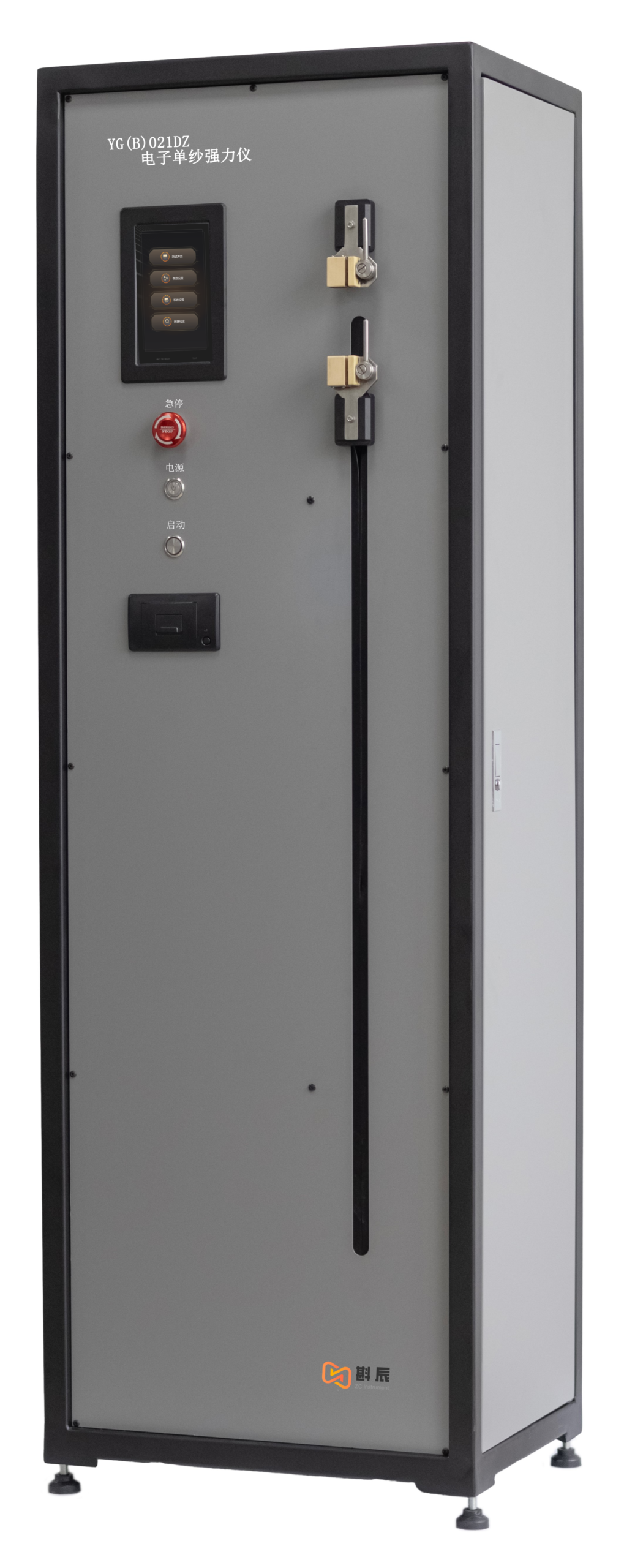

Single Yarn Strength Tester YG(B)021DZ-10

[Scope of Application]：It is used for testing the breaking strength and elongation of various single yarns—including cotton, wool, linen, silk, chemical fibers, and core-spun yarns—as well as pure or blended fiber yarns.

[Test Mode]：Controlled by a microprocessor, this instrument features automatic data processing, a 7-inch large-screen display, printout capabilities, and PC connectivity for data transfer. It utilizes the internationally preferred Constant Rate of Elongation (CRE) testing principle. The program is easy to configure, and the testing process is fast and convenient. It is an accurate, stable, and reliable, yet cost-effective, solution.

[Relevant Standards]：GB/T 14344, GB/T 3916, ISO 2062, ASTM D2256

[Instrument Features]：

1. Maximum tensile speed of up to 3000 mm/min, with digital setting capabilities.
2. Automatic pre-tensioning; the instrument applies the pre-tension automatically, eliminating the need for traditional mechanical tension gauges.
3. 7-inch touchscreen with integrated real-time curve display.
4. Equipped with a built-in thermal printer.
5. Includes comprehensive software for mechanical yarn testing as standard.
6. Supports PC communication interface.
7. Driven by a servo system.
8. Digitally configurable gauge length (clamping distance) with automatic positioning.
9. 1GB internal memory, capable of storing up to 100,000 test results.

[Technical Parameters]

1. Test Method：Based on the internationally preferred Constant Rate of Elongation (CRE) principle.
2. Force Measurement System：Utilizes a resistance strain gauge-based load cell.
3. Force Measurement Range：0–100 N
4. Minimum Resolution：0.1 cN
5. Force Measurement Accuracy：≤±0.2% F.S. (Full Scale)
6. Gauge Length (Clamping Distance)：Automatically controlled and digitally set.
7. Tensile Speed：1–3000 mm/min, digitally adjustable, with an error margin of ≤±2%. 8. Effective Travel: Up to 900 mm
8. Pre-tensioning Clamp: Configured based on customized functional requirements
9. Display/Output: 7-inch color touchscreen
10. Data Processing Capacity: Supports storage of up to 1 GB of data
11. Printer: Thermal printer
12. Power Supply: AC 220V ±10%, 50 Hz
13. Dimensions: 520 (L) × 430 (W) × 1630 (H) (mm)
14. Weight: Approx. 70 kg (standard configuration)
