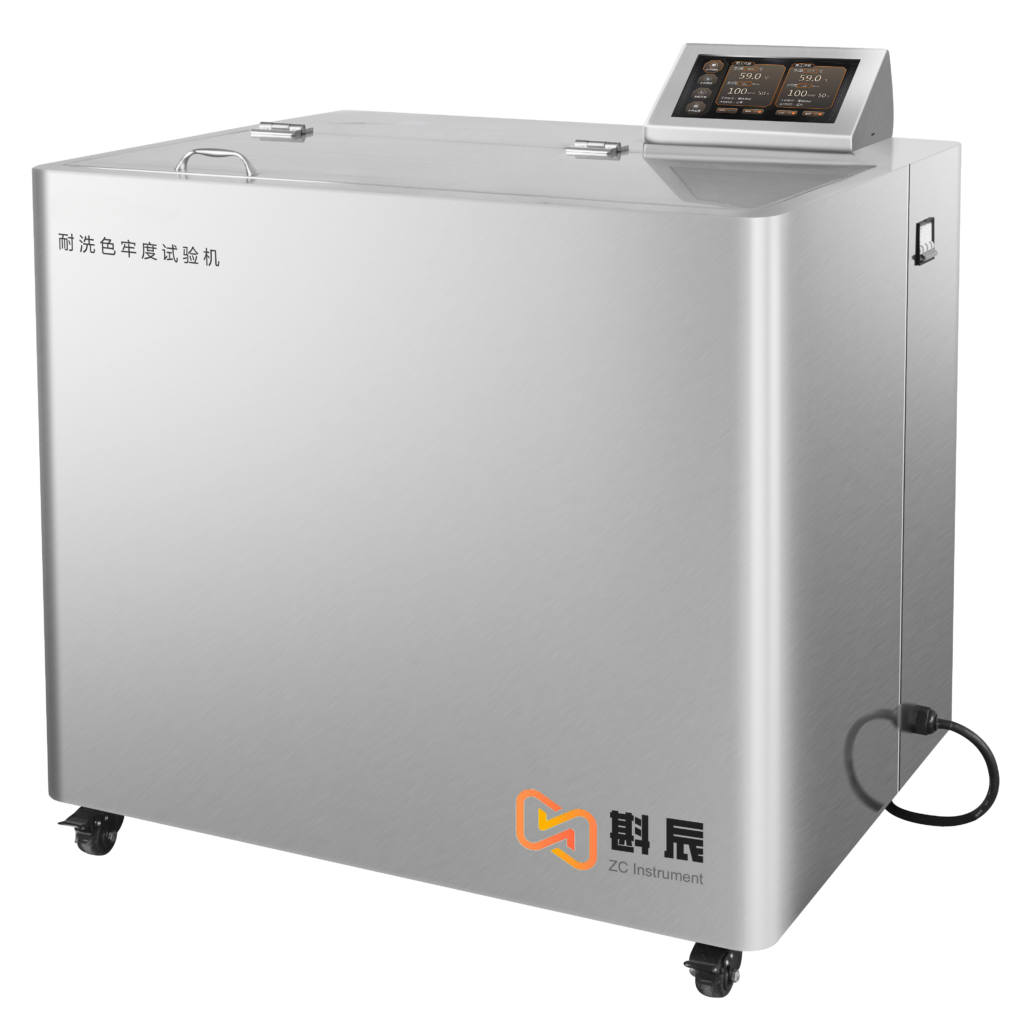

Washing Color Fastness SW-24GT

[Instrument Name]: Washing Color Fastness Tester

[3^rd Lab Qualification Certificate]：

Tianfangbiao Certificate No.：TTTS-MCDT-FZ2512-04

[Patent number]：China Patent No. 23342211

[Calibration Certificate]：Shanghai Branch of the National Textile Metrology Station / Shanghai Textile Group Testing Standards Co., Ltd. Certificate No.ZZ-202603133

[Drafting standard]：Enterprise Standard Q/WZC012-2026SW-12D

[Scope of Application]:

It is used for testing the color fastness of various textiles to washing, dry cleaning, and milling; also used to evaluate the wash-fastness performance of dyes.

[Relevant Standards]：

GB/T 3921-2008 “Textiles — Tests for colour fastness — Colour fastness to washing with soap or soap and soda”;

GB/T 5711-2015 “Textiles — Tests for colour fastness — Colour fastness to dry cleaning using perchloroethylene solvent”;

GB/T 12490-2014 “Textiles — Tests for colour fastness — Colour fastness to domestic and commercial laundering”;

AATCC 61/1A/2A/3A/4A/5A, JIS L0860/0844, BS 1006, ISO 105 C01/02/03/04/05/06/08, DIN, NF, CAN/CGSB, AS, etc.

[Instrument Features]:

1. Features a 10-inch multifunctional color touchscreen for convenient operation.

2. Includes automatic water level control with automatic water intake and drainage functions, as well as boil-dry protection.

3. Constructed with high-grade brushed stainless steel for an aesthetically pleasing and durable finish.

4. Equipped with a safety interlock switch on the door to effectively prevent burns and crushing injuries.

5. Utilizes an imported industrial microcontroller for temperature and time programming; incorporates PID (Proportional-Integral-Derivative) control to effectively prevent temperature overshoot and ensure timing accuracy within ±1 second.

6. Employs solid-state relays to control heating elements; this eliminates mechanical contacts, resulting in stable temperatures, silent operation, and an extended service life.

7. Built-in standard programs allow for automatic operation via direct selection; supports program editing/storage and individual manual operations to accommodate various testing standards.

8. Test cup manufacturing quality far exceeds that of domestic peers:

[Technical Specifications]:

1. Test cup capacity:

550ml (Φ75mm × 120mm) – Suitable for GB, ISO, JIS, and other standards (24 units);Optional 1200ml (Φ90mm × 200mm) – AATCC standard (24 units)

2. Distance from rotating rack center to test cup bottom: 45mm

3. Rotation speed: 40 ± 2 rpm

4. Time control range: 9999 min

5. Time control error: < ±5 s

6. Temperature control range: Ambient temperature to 100°C

7. Temperature control error: ≤ ±1°C

8. Heating method: Electric heating

9. Water level control: Automatic water inlet and drainage

10. Features a 10-inch multifunctional color touchscreen display

11. Built-in standard programs allow for automatic operation via direct selection; supports program editing/storage and individual manual operations to accommodate various testing standards

12. Heating power: 9 kW

13. Power supply: AC 380V, 50Hz, 5 kW

14. Dimensions: 1400mm × 750mm × 1150mm (L × W × H)

15. Weight: 220 kg

[Optional IoT Module Functions]:

1. Equipment status statistics: Displays the number of online and offline devices;

2. Equipment alarm display: Shows the number and severity level of current alarms;

3. Real-time test data and status/progress display, including details on the testing equipment. Displays real-time data, experiment progress, and total experiment duration;

4. Allows direct parameter configuration and transmission to the instrument for modification, enabling bidirectional control between the instrument and the platform;

5. Map display: Shows the geographical locations and status of various devices based on device type;

6. Laboratory monitoring: Integrates surveillance cameras based on customer requirements to display real-time video feeds from the laboratory;

7. Customized unified management interface for laboratory equipment;

8. Temperature and humidity display: Integrates with third-party monitoring platforms to collect and present real-time environmental data (temperature and humidity) from the laboratory;

9. Supports device monitoring and alarm notifications via both mobile app and web interfaces;

10. Supports customization of the app name and logo;

11. Multi-account platform management: Supports multi-level permission settings and account allocation across different devices, departments, and subsidiaries, facilitating unified enterprise management and enhancing device data security;

12. Supports maintenance work order submission, allowing manufacturers to view and manage maintenance requests;

13. Supports data exchange via Ethernet (wired), Wi-Fi, and Bluetooth;

14. Capable of monitoring and managing multiple devices simultaneously;

15. Features high-capacity storage and analysis capabilities for test data;

16. Supports independent test data output for each testing station;

17. Supports OTA (Over-the-Air) software updates for continuous device evolution;

[Standard Configurations]:

Choose one from standard configurations A, B, or C; D is an optional configuration.

A: 24 ISO standard cups (550ml)

B: 24 AATCC standard cups (1200ml)

C: 12 ISO standard cups (550ml) + 12 AATCC standard cups (1200ml)

D: Optional combination of 24 ISO/GB-standard (Chinese National Standard) cups + 24 AATCC-standard cups (additional cost of 3,600 RMB)
