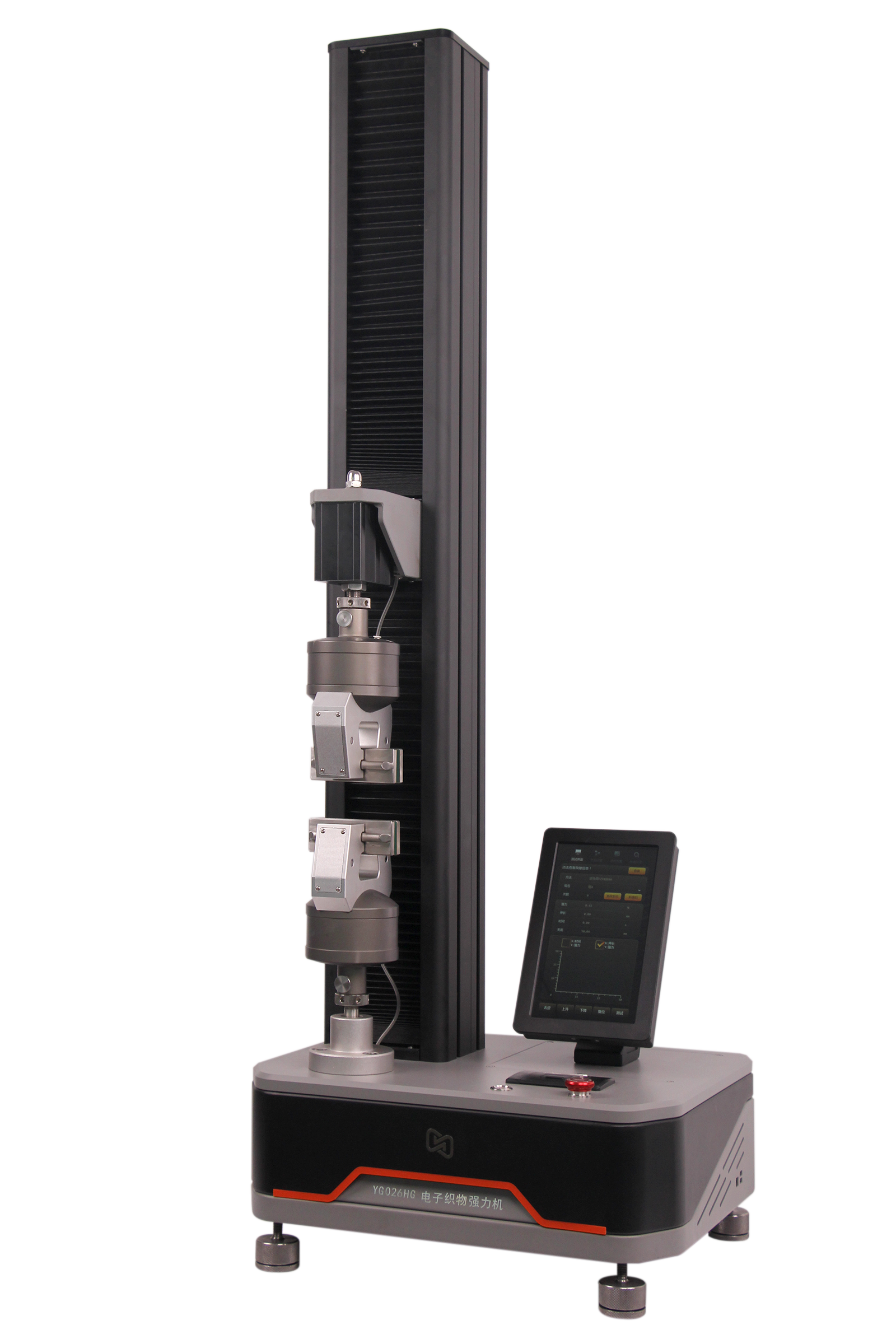

Universal Test Machine YG(B)026SZ

[Instrument Features]:

1. Features automatic positioning after gripper replacement and automatic calibration of fixture locations, eliminating the need for manual calibration.
2. By limiting the closing air pressure and speed of the fixture, the system automatically detects abnormal pneumatic fixture behavior, reduces human error, and effectively minimizes the risk of finger injuries caused by the fixture.
3. Traditional pneumatic grippers have fixed clamping forces during testing; insufficient force causes sample slippage, while excessive force damages the fabric. Our company’s proprietary progressive pressure technology dynamically increases the clamping force in tandem with the sample’s tensile load, maintaining a balance that prevents both slippage and sample damage. (Optional feature)
4. TEDS sensor automatic recognition: the instrument automatically identifies the capacity range after a sensor change and applies the necessary software corrections.
5. Comes pre-loaded with hundreds of programs and an extensive library of preset test methods, complying with major standards such as GB, FZ, AATCC, ASTM, ISO, JIS, EN, MS, and LTD.
6. Software system features fully proprietary copyright, facilitating future secondary development.
7. Electronic leveling system allows for real-time visualization of leveling offsets, reducing testing errors.
8. Supports full customization of standards, parameters, results, and reports.
9. Offers multiple test report formats (scatter plots, curves, raw data, etc.).
10. Includes robust support for calibration and verification tools.
11. IoT-enabled for remote monitoring of operational status, fault alerts, and other information.
12. Offers a choice of multiple measurement unit systems.
13. User-friendly interface design; displays instrument status and fault alerts immediately upon power-up.
14. Includes upper and lower travel limits for the crosshead, as well as protections against overload, over-voltage, over-current, overheating, under-voltage, and under-current. Features include automatic earth-leakage protection and manual emergency shut-off.
15. Equipped with a pneumatic, interchangeable specimen clamp system; over 100 types of clamps are available, with customization options based on customer materials.
16. Test data can be copied directly from the instrument via USB drive, facilitating testing across diverse locations and environments.
17. Optional barcode scanner and standard network communication module available.
18. Optional standard API interface available, supporting real-time data transmission with LIMS, automated workflows, and cross-system integration.

[Hardware Design]:

1. Robust, high-rigidity frame designed for a service life exceeding 30 years.

Features include preloaded bearings, precision ball screws, thickened crossheads and base beams, and low-tension drive belts. These elements minimize stored energy during testing, resulting in superior performance and more accurate modulus and strain measurements.

2. Precision guide rails ensuring excellent alignment and minimal bending.

Accurate stress and strain results during axial testing require a system with stable, rigid, and precise guide rails to ensure that lateral forces acting on the specimen under load are minimized.

3. Advanced, high-reliability servo control drive system.

A high-power servo motor enables rapid acceleration at the start of tests and faster cycle times during cyclic testing. A dual-belt system synchronizes ball screw movement, eliminates crosshead tilting tendencies, and aids in system alignment and precise positioning.

1. Embedded System-Based 7th Generation Digital Signal Processing (DSP) Control Technology
2. High-speed, low-vibration AC servo drive unit (Japanese-made) and high-resolution digital closed-loop controller.
3. Modular design featuring multi-channel data acquisition and analog output modules, as well as open data management; enables monitoring and control of load, deformation, displacement, speed, and more.
4. High-precision imported load cell utilizing a high-precision 24-bit A/D converter; sampling frequency of 2000 Hz; maximum force resolution of 1:1,000,000 across the full range.
5. Equipped with a mobile control box (portable or frame-mounted) that displays machine status and provides essential test controls. Includes jog buttons for positioning and a precision thumbwheel for fine adjustments—allowing for efficient crosshead movement and fine-tuning accuracy down to 0.1 mm.
6. Supports bidirectional control between the main unit control box and the computer; includes precision fine-tuning switches to facilitate precise adjustments to distance and timing, particularly after changing grips or fixtures for specialized requirements. 6. User-friendly open-type pneumatic grips: To ensure the material is clamped precisely along the vertical centerline, the open-type pneumatic grips allow the specimen to be fully inserted into the upper and lower gripping units. Manual adjustment ensures vertical alignment before clamping, thereby preventing jaw breakage or inaccurate force readings caused by improper clamping.

[Optional IoT Module Features]:

1. Device status statistics: Displays the current number of online and offline devices.
2. Device alarm display: Shows the number and severity levels of active alarms.
3. Real-time experiment data and progress display: Includes device status, current readings, experiment progress, and total duration.
4. Parameter configuration: Allows direct parameter settings to be sent to the instrument for modification, enabling bidirectional control between the instrument and the platform.
5. Map view: Displays the geographical location and status of various devices categorized by type.
6. Laboratory monitoring: Integrates surveillance cameras based on customer requirements to display real-time video feeds from the laboratory.
7. Customized unified management interface for laboratory equipment.
8. Temperature and humidity display: Integrates with third-party monitoring platforms to collect and display real-time environmental data from the laboratory.
9. Device monitoring and alarm notifications via mobile app and web interface.
10. Customizable app name and logo.
11. Multi-account platform management: Supports multi-level permission settings and account allocation across different devices, departments, and subsidiaries, facilitating unified enterprise management and enhancing data security.
12. Maintenance ticketing: Supports the submission of maintenance requests, allowing manufacturers to track and manage repairs.
13. Connectivity support: Supports Ethernet (wired), Wi-Fi, and Bluetooth for data exchange.
14. Simultaneous monitoring and management of multiple devices.
15. Large-capacity storage and analysis capabilities for test data.
16. Independent test data output for each workstation.
17. Full-system software OTA (Over-the-Air) update capability for continuous system evolution.

[Technical Specifications]:

1. Test Method: Based on the internationally preferred Constant Rate of Extension (CRE) principle
2. Force Measurement System: High-precision load cell
3. Force Measurement Range: 1%–100% of full scale; full scale 2500N; resolution 0.1N
4. Clamping Method: Manual or pneumatic clamping
5. Force Measurement Accuracy: ≤±0.2% F.S.
6. Gauge Length (Clamping Distance): Automatic positioning, digitally set
7. Gauge Length Adjustment Accuracy: ±0.1mm
8. Speed ​​Control System: AC servo drive system
9. Tensile Speed: 0.001–1000 mm/min (digitally adjustable); error ≤±1%
10. Maximum Instrument Travel: 600mm
11. Configuration: Single-column tabletop model
12. Elongation Resolution: 0.001mm
13. Sampling Frequency: 2000 readings/second
14. Power Supply: AC 220V ±10%, 50Hz, 1kW
15. Dimensions: (540 × 450 × 1435) mm (Main unit L × W × H)
16. Weight: Approx. 80kg

17. Includes one set of universal pneumatic grips and one set of jaw inserts
