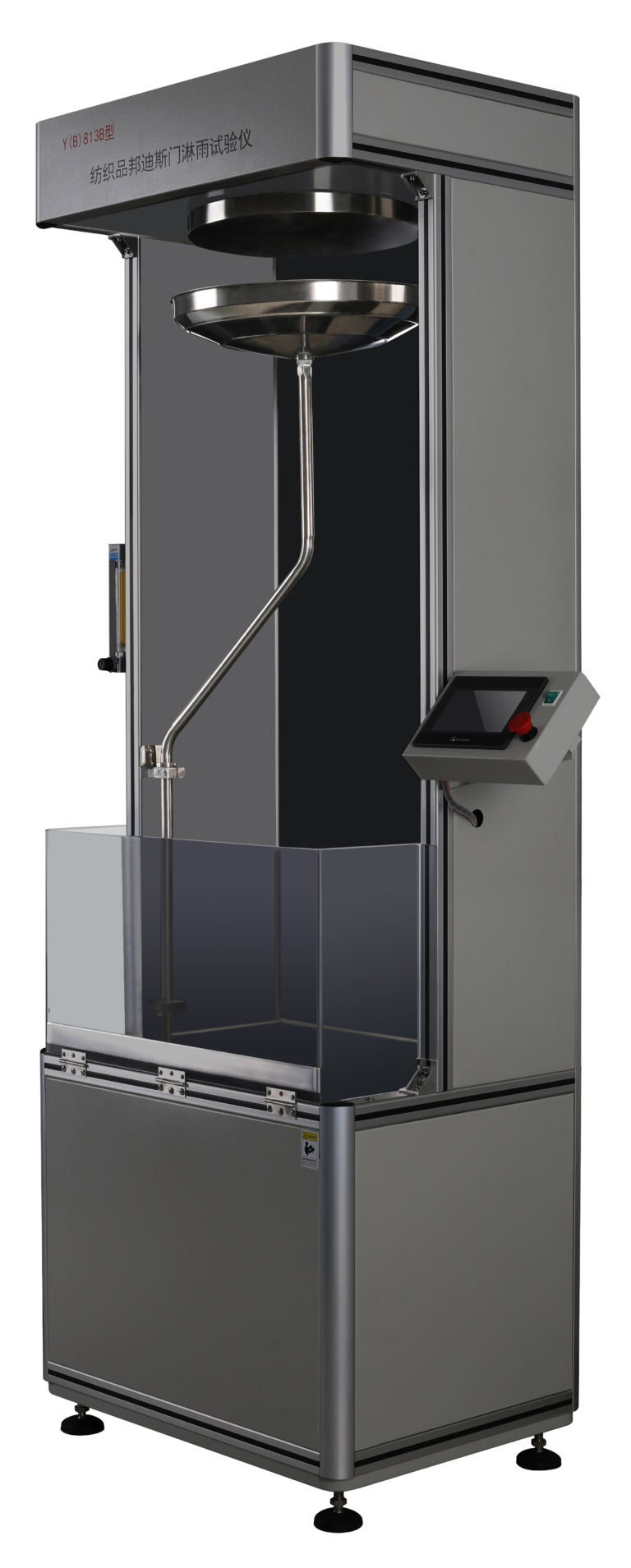

Budesmann YG(B)813B

[Instrument Name]：Fabric Budesmann Tester

[Drafting standard]：Enterprise Standard Q/WZC009-2026

[Scope of Application]:

It is used to determine the water repellency of fabrics using the Bundesmann rain-shower method.

[Relevant Standards]: GB/T 14577, ISO 9865, BS EN 29865, DIN 53888, JIS L1092, etc.

[Instrument Features]:

1. 7-inch color touchscreen with Chinese/English menu-driven operation;
2. Parts in contact with liquid made entirely of stainless steel;
3. Pre-venting device for the rainfall head;
4. Automatic specimen wiper;
5. Four test cups tilted at 15 degrees;
6. Easy-to-install specimen holders;
7. Built-in water filtration system;
8. Test data can be copied directly to a USB drive, facilitating testing in various locations;
9. Built-in thermal printer;

[Technical Parameters]:

1. Rainfall area: Approx. 1300 cm²
2. Number of rainfall head nozzles: 300
3. Rainfall rate (per 100 cm²): (100–300) ml/min (adjustable)
4. Specimen dimensions: Diameter 140 mm
5. Test area: Approx. 80 cm²
6. Test cup diameter: 100 mm
7. Test cup mounting angle: 15 degrees
8. Test cup rotation speed: 6 r/min
9. Cross-shaped wiper dimensions: (48 × 5) mm
10. Wiper rotation speed: Approx. 20 r/min
11. Wiper friction pressure: Approx. 2.5 N
12. Test duration: Displayed on screen
13. Power supply: AC 220V ±10%, 50Hz, 200W
14. Dimensions: (600 × 800 × 2350) mm

15. Weight: Approx. 190 kg
