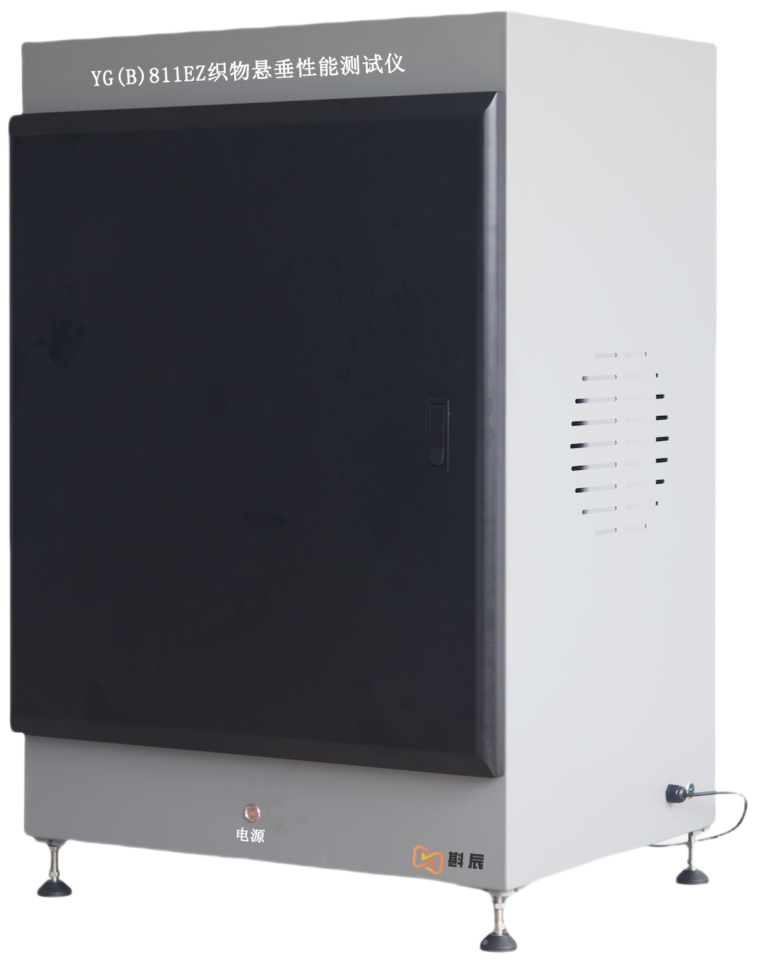

Fabric Drape Tester YG(B)811EZ

[Instrument Name]：Fabric Drape Tester

[Scope of Application]: A high-tech instrument designed to quantitatively measure the dynamic and static drape performance of various fabrics. It utilizes a computer as the main processor to perform digital imaging and calculations on dynamic and static drape images transmitted from the testing unit. The sample rotation speed is adjustable and digitally displayed, allowing for the acquisition of drape data at various speeds.

[Test Modes]: Measures multiple fabric-style indicators: drape coefficient, number of drape waves, average wave amplitude, maximum wave amplitude, minimum wave amplitude, drape uniformity, and morphological change rate.

[Relevant Standards]: GB/T 23329-2009, FZ/01045, BS5058

[Instrument Features]:

1. CCD imaging with dynamic and static image processing capabilities;

2. Supports various charts and data statistics, analysis, storage, and output;

3. Capable of testing samples of any color without the need to change the background color;

4. Operating mode: Microcomputer-controlled with CCD imaging; fully automated computer processing of images and data.

[Technical Specifications]:

1. Communication interface: USB

2. Image sensor: CCD sensor

3. Static (dynamic) drape coefficient: 0–100% ±2

4. Drape uniformity: 0–100% ±2

5. Shape change rate: 0–100% ±2

6. Surface ripple count error: ±1

7. Rotation speed: Adjustable, 50–150 ±1 r/min

8. Specimen cutting template diameters: 240mm, 300mm, 360mm

9. With 120mm clamping disc and 240mm specimen diameter:

30% calibration plate diameter: 169mm; 50% calibration plate diameter: 189.7mm;

70% calibration plate diameter: 211.3mm; 100% calibration plate diameter: 240mm

10. With 180mm clamping disc and 240mm specimen diameter:

14.2% calibration plate diameter: 189.7mm; 48.6% calibration plate diameter: 211.3mm; 100% calibration plate diameter: 240mm

11. With 180mm clamping disc and 300mm specimen diameter:

21.3% calibration plate diameter: 211.3mm; 43.8% calibration plate diameter: 240mm; 100% calibration plate diameter: 300mm

12. With 180mm clamping disc and 360mm specimen diameter:

12.6% calibration plate diameter: 211.3mm; 25.9% calibration plate diameter: 240mm;

59.3% calibration plate diameter: 300mm; 100% calibration plate diameter: 360mm

13. Dimensions: (770 × 650 × 1160) mm ) mm (L×W×H)

14. Power supply: AC 220V, 50Hz

15. Weight: 115 kg
