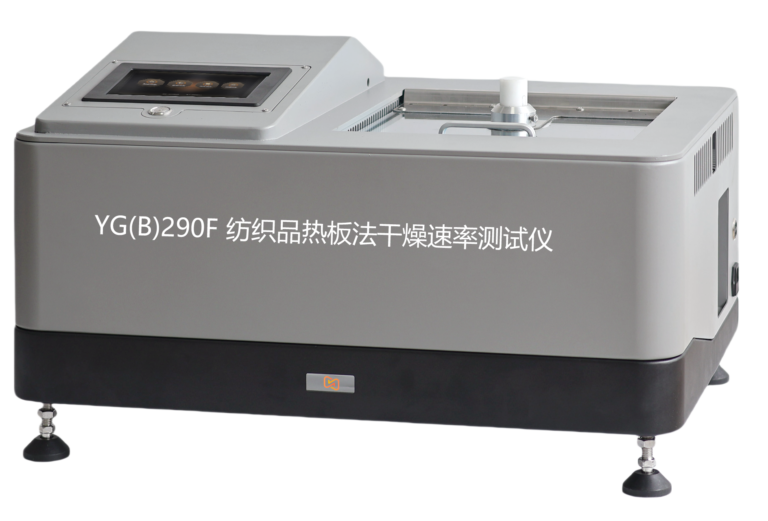

Drying Rate Tester YG(B)290F

[Instrument Name]：Hotplate Method Fabric Drying Rate  Tester

[Scope of Application]：

It is used for testing the drying time and drying rate of functional moisture-wicking, quick-drying fabrics.

[Relevant Standards]：AATCC 201; FZ/T 01176-2024 “Textiles – Determination of fabric drying rate – Hot plate method”

[Instrument Features]：

1. Equipped with high-precision air velocity sensors and infrared temperature sensors;

2. Precision water-dripping mechanism;

3. Color touchscreen control with a bilingual (Chinese/English) menu interface;

4. Integrated with PC software to automatically perform fabric drying time and drying rate tests, as well as comprehensive data analysis;

5. Data displayed and saved as curves and charts for easy analysis and printing;

6. Fully automated operation with safety protection features;

7. Digitally adjustable air velocity and water-dripping volume. [Technical Specifications]:

1. Heating plate: 305mm × 305mm ± 1mm

2. Flexible heating pad: 305mm × 305mm ± 1mm

3. Thermal insulation cork board: 305mm × 305mm ± 1mm

4. Metal pressure bar: 150mm × 40mm × 2mm ± 1mm

5. Heating plate temperature: Settable range (30–40)°C; heating precision ±0.1°C

6. Specimen temperature: Measurement precision ±0.2°C

7. Drip device: Settable rate range (0.01–0.2) ml/s

8. Air speed: Settable range (1–3) m/s; precision ±0.3 m/s

9. Specimen dimensions: 150mm × 150mm

10. Overall dimensions: 510mm × 510mm × 360mm (L × W × H)

11. Power supply: AC 220V ± 10%, 50Hz

12. Weight: Approx. 40kg
