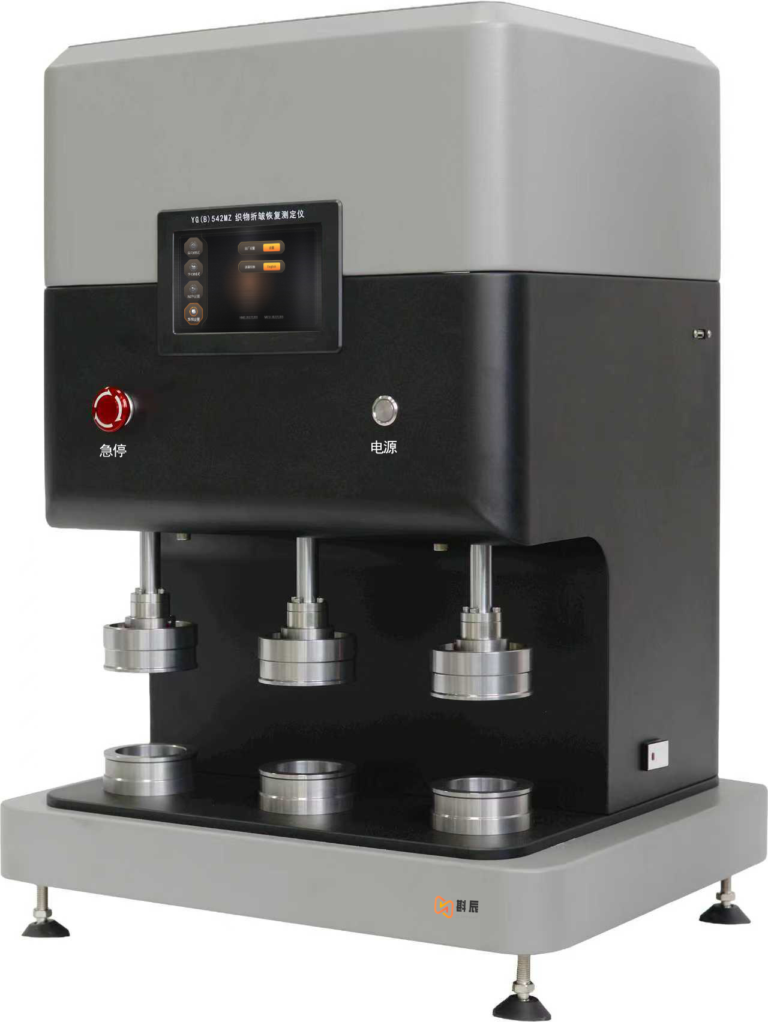

Fabric Crease Recovery Tester YG(B)542MZ

[Instrument Name]：Fabric Crease Recovery Tester

[Scope of Application]:

It is used to test the recovery capability of various fabrics after being subjected to a specific compressive load for a set duration.

[Relevant Standards]: GB/T 29257, ISO 9867, AATCC 128, etc.

[Instrument Features]:

1. Supports simultaneous testing at three stations, completing three tests in one run; highly efficient and fast with minimal error.

2. Features automatic rotation for applying pressure, automatic timing initiation, and automatic release for recovery.

3. Uses weights for pressure application; precise and convenient, with no impact from overshoot forces.

4. Utilizes magnetic force and a semi-circular clamping mechanism for easy specimen loading and unloading.

5. Incorporates dual-protection design for the vertical travel of the upper presser foot, ensuring safety and reliability.

6. The upper presser foot completely disengages when it reaches the lowest point, ensuring precise compression of the specimen.

[Technical Specifications]:

1. Diameter of upper and lower press heads: 89.0 ± 0.5 mm

2. Initial distance between upper and lower press heads: 110 ± 1 mm

3. Descent speed of upper press head: 200 ± 10 mm/min

4. Rotation angle of upper press head: 180 ± 1°

5. Total weight of upper press head (including weights): 39.2 ± 1 N

6. Weight of individual weight: 10 N

7. Number of weights: 2 per station

8. Specimen dimensions: 150 mm × 280 mm

9. Instrument dimensions: 600 × 480 × 820 mm (L × W × H)

10. Weight: 92 kg

11. Power supply: AC 220 V ± 10%, 50 Hz, 0.5 kW
